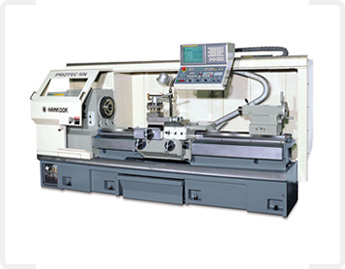

• High precision and accuracy comparable to full CNC lathe
• Most effective machine at most competitive
• Guidance Hand wheel (Simultaneous 2 axes control)

---

- Swing over bed 530mm
- Swing over carriage 300mm
- Max. turning length 1055/1555mm
- Distance between centers 1000/1500mm
- Max. load between centers 2000kg
- Spindle bore 77mm
- Spindle speeds 7~1600rpm
- Spindle motor AC 5.5/7.5kW

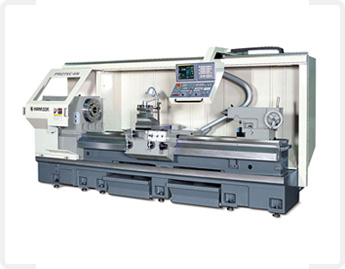

• High precision and accuracy comparable to full CNC lathe
• Most effective machine at most competitive
• Guidance Hand wheel (Simultaneous 2 axes control)

---

- Swing over bed 650mm
- Swing over carriage 380mm
- Max. turning length 1070~3070mm
- Distance between centers 1000~3000mm
- Max. load between centers 3000kg
- Spindle bore 85mm
- Spindle speeds 3~1400rpm
- Spindle motor AC 11/7.5kW

• CNC

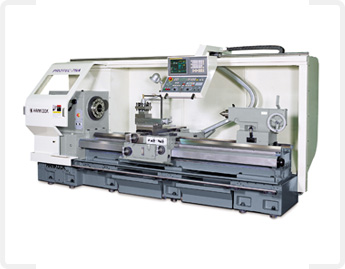

• High precision and accuracy comparable to full CNC lathe
• Most effective machine at most competitive
• Guidance Hand wheel (Simultaneous 2 axes control))

---

- Swing over bed 750mm
- Swing over carriage 480mm
- Max. turning length 935~3935mm
- Distance between centers 1000~4000mm
- Max. load between centers 3000kg
- Spindle bore 105/176mm
- Spindle speeds 3~1250/3~1000rpm
- Spindle motor AC 11/15, 15/18.5kW

• Combine advantages of full CNC lathe and manual lathe
• Most effective machine at most competitive
• Simultaneous 2 axes control
• Large spindle bore *105 to 440mm

---

- Swing over bed 950mm
- Swing over carriage 630mm
- Max. turning length 1845~7845mm
- Distance between centers 2000~8000mm
- Max. load between centers 5000kg
- Spindle bore 105~254mm
- Spindle speeds 2~1000/3~800/2~630rpm
- Spindle motor AC 18.5/22kW:9NA,22/26kW:9NB/C

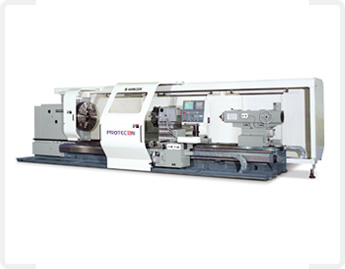

• Combine advantages of full CNC lathe and manual lathe
• Most effective machine at most competitive
• Simultaneous 2 axes control

---

- Swing over bed 1100/1300mm
- Swing over carriage 740/940mm
- Max. turning length 2000~8000mm
- Distance between centers 2000~8000mm
- Max. load between centers 8000kg
- Spindle bore 105~440mm
- Spindle speeds 1~800/1~630rpm
- Spindle motor AC 30/37kW

- Swing over bed 750/8S0/950/1050/1120/1320mm
- Swing over carriage 480/530/630/730/740/940mm
- Max. tuming length 2000~6000/2000~8000mm
- Distance between centers 2000~6000mm/2000~8000mm
- Max. load between centers 4000/6000/8000kg
- Spindle bore 105(176)mm/105(176,254)mm/105(330,380,440)mm
- Spindle speeds 3~1250(6~1000)rpm/3~1250(3~800,2~630)rpm/ 3~800/1~630(2~500, 3~400)rpm
- Spindle motor AC 15/18.5, AC 22/26, AC 37/45

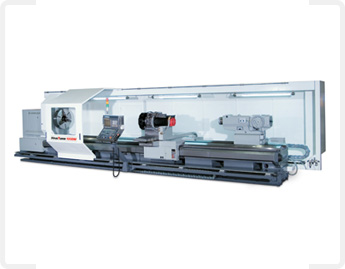

• Heavy duty long bed CNC turning lathe
• Automatic 3-speed geared head stock
• X/Z-axis manual hand wheel

---

- Swing over bed 710mm
- Swing over carriage 480mm
- Max. turning length t000~4200mm
- Distance between centers 1200~4200mm
- Max. load between centers 3000kg
- Spindle bore 105/176mm
- Spindle speeds 2.8~2000/3~1000rpm
- Spindle motor AC 18.5/22kW, AC 18.5/22kW

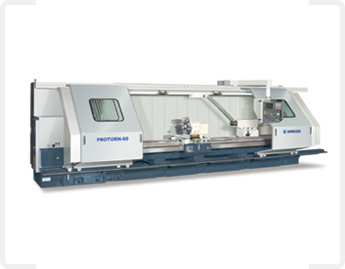

• Heavy duty CNC turning lathe
• Automatic 3-speed geared head stock
• Extra wide one-piece cast iron bed

---

- Swing over bed 900/1000mm
- Swing over carriage 560/660mm
- .Max. turning length 2000~8000mm
- Distance between centers 2000~8000mm
- Max. load between centers 8000kg
- Spindle bore 105mm
- Spindle speeds 2~18000mm
- Spindle motor AC 30/37kW

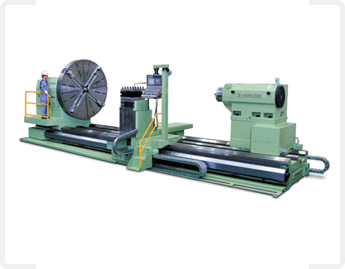

• High capacity. Heavy duty CNC turning lathe
• Automatic 4-speed geared head stock
• Extra wide one-piece cast iron bed

---

- Swing over bed 1100~1700/2000~2600mm
- Swing over carriage 720~2400mm
- Max. turning diameter 1100~2600mm
- Distance between centers 2000~8000mm, 4000/5000/6000/7000/8000mm
- Max. load between centers 12000kg/25ton
- Spindle bore 105mm
- Spindle speeds 1~500/0.5~250rpm
- Spindle motor AC 37/45kW/AC 95kW

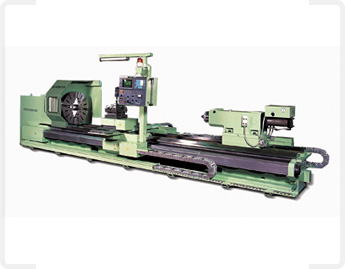

• High capacity. heavy duty CNC turning lathe
• Automatic 4-speed geared head stock
• Extra wide one-piece cast iron bed
• Half Carriage

---

- Swing over bed 1360/1580mm
- Swing over carriage 1120/1320mm
- Max. turning diameter 1360/1580mm
- Max. turning length 2000~8000mm
- Distance between centers 2000~8000mm
- Max. load between centers 12000kg
- Spindle bore 105mm
- Spindle speeds 1~500rpm
- Spindle motor AC 37/45kW
