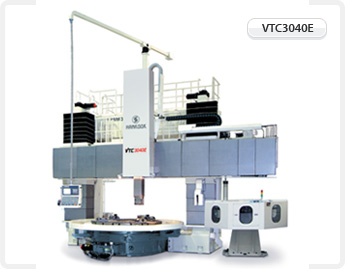

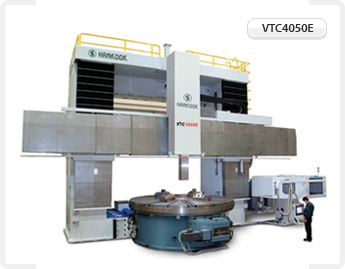

• Maximum 6000mm turning capacity
• Massive one-piece cast irom bed, column and cross-rail
• Fully controlled C-axis and rotary spindle

---

- Max. turning diameter 4000/5000/6000mm
- Max. Turning height 2000/2500/3000mm
- Max. load on table 30,000/50,000/60,000kg
- Table diameter 3000/4000/5000mm
- Table speeds 1~120/1~60/1~50rpm
- Table drive motor AC 60/75kW, 120kW, 155kW
- VTC type AC 22/26kW, 37/45kW
- VTC type 15~1500rpm/30~3000rpm
- VTC type 0.001deg.

• Maximum 6000mm turning capacity
• Massive one-piece cast iron bed, column and cross-rail
• Fully controlled C-axis and rotary spindle

---

- Max. turning diameter 3000mm
- Max. turning height 2000/2500mm
- Max. load on table 20,000kg
- Table diameter 2000mm
- Table speeds 1~120rpm
- Table drive motor AC 60/75kW
- VTC type AC 22/26kW
- VTC type 15~1500rpm
- VTC type 0.001deg.

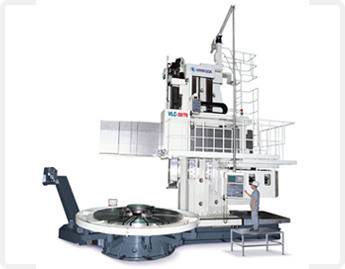

• Maximum 6000mm turning capacity
• Massive one-piece cast iron bed, column and cross-rail
• Fully controlled C-axis and rotary spindle

---

- Max. turning diameter 4000mm
- Max. turning height Left Ram 750mm / Right Ram 850mm
- Max. load on table 30,000kg
- Table diameter 3000mm
- Table speeds 1~120rpm
- Table drive motor AC 60/75kW
- VTC type AC 22/26kW
- VTC type 15~1500rpm
- VTC type 0.001deg.

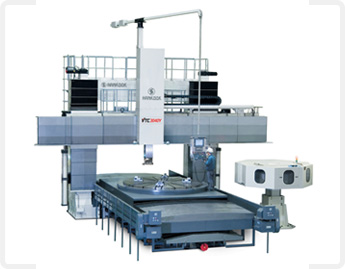

• Maximum 6000mm turning capacity
• Massive one-piece cast iron bed, column and cross-rail
• Fully controlled C-axis and rotary spindle

---

- Max. turning diameter 4000/5000/6000mm
- Max. turning height 2000/2500/3000mm
- Max. load on table 30,000/50,000/60,000kg
- Table diameter 3000/4000/SOOOkg
- Table speeds t-t00/1--ro/1-50rpm
- Table drive mo1or AC 60/75kW,100kW
- Y-axis stroke 3000mm/5000mm
- Spindle motor AC 22/2fJkW, 37/45kW
- Mill spindle speed 15-1500rpm/30-3000rpm
- Min.lndexangleofC.axis 0.001deg.

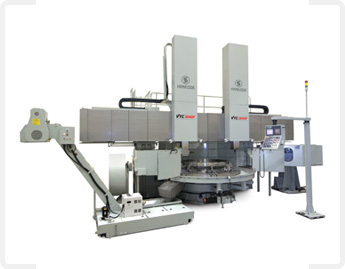

• Maximum 6000mm turning capacity
• Massive one-piece cast iron bed, column and cross-rail
• Fully controlled C-axis and rotary spindle

---

- Max. turning diameter 7000/8000mm
- Max. turning height 3000mm
- Max. load on table 40,000/60,000mm
- Table diameter 3000/4000mm
- Table speeds 1~100/1~60rpm
- Table drive motor AC 60/75kW, 100kW
- VTC type AC 18.5/22kW
- VTC type 15~1500rpm
- VTC 1 type 0.001deg.

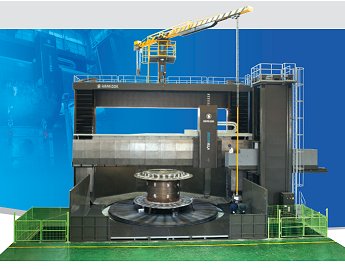

• Maximum 12.000mm (472") turning capacity
• Maximum 6000mm (236") turning height
• 400 tons load capable table

---

- Max. turning diameter 12,000mm
- Max. turning height 6,000mm
- Max. load on table 400,000kg
- Table diameter 10,000mm
- Table speeds 1~16rpm
- Table drive motor AC 100(133)kW x2-set
- VTC type AC 60/75(80/100)kW
- VTC type 15~1500rpm
