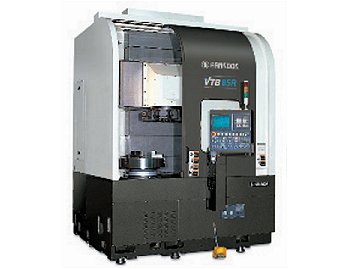

• One-piece cast iron bed&column of high-rigid construction
• Induction hardened and precision ground box type guideways
• Rapid traverse speed (X/Z) 15m/min (85R) and 12m/min(100R)
• Heavy dutymachining capacity with high tor que 292kgf.m(85R) and 512kgf.m(100R) spindle
• Machining progress intensiveness available by the complex machining of turn-mill function(VTC only)

---

- Max turning diameter 850/1000mm
- Max turning height 850/900mm
- Standard chuck size 21/32inch
- Spindle speed 18~1800rpm / 10~800rpm
- Spindle motor AC 37/45kw / AC 45/55kw

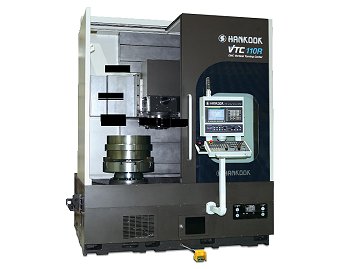

• One-piece cast iron bed, column, Saddle and Cross.rail of high.rigid construction
• Induction hardened and precision ground box t)/lle guideways
• Rapid traverse speed(X/Z)12m/min
• Heavy dutymachining caflacity with high tor que 512kgf.m spindle
• Machining progress intensiveness availablebythe complex machining of turn-mill function

---

- Max turning diameter 1100mm
- Max turning height 850mm
- Standard chuck size 32inch
- Spindle speed 10~800rpm
- Spindle motor AC 45/55kw

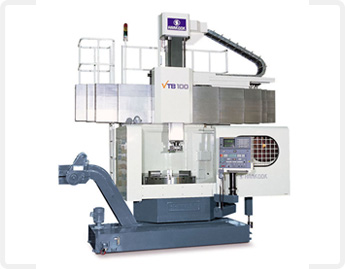

• Vertical Turning Lathes for machining small to medium valve
• Automatic index chuck

---

-Max. turning diameter 1250mm
-Max. turning height 800mm
-Max. load on table 4000kg
-Table diameter 1000mm
-Table speeds 1.1~450rpm
-Table drive motor AC 30/37kW

• High capacity. Heavy duty, vertical boring & turning mills
• High quality cast iron constructions
• Full C-axis and mill-spindle (VTC)uck

---

- Max. turning diameter 1250mm
- Max. turning height 800mm
- Max. load on table 4000kg
- Table diameter 1000mm
- Table speeds 1.1~450rpm
- Table drive motor AC 30/37kW
- VTC type AC 11/15kW
- VTC type 30~30000rpm
- VTC type 0.001deg.

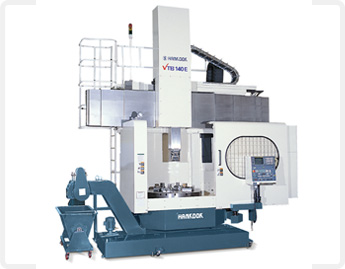

• High capacity. Heavy duty, vertical boring & turning mills
• High quality cast iron constructions
• Full C-axis and mill-spindle (VTC)

---

- Max. turning diameter 1600mm
- Max. turning height 900mm
- Max. load on table 8000kg
- Table diameter 1250/1400mm
- Table speeds 09~360/0.8~320rpm
- Table drive motor  AC 30/37kW, AC 37/45kW
- VTC type AC 15/18.5kW
- VTC type 30~30000rpm
- VTC type 0.001deg.

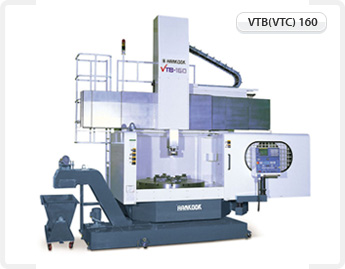

• High capacity. Heavy duty, vertical boring & turning mills
• High quality cast iron constructions
• Full C-axis and mill-spindle (VTC)

---

- Max. turning diameter 1600mm
- Max. turning height 1400mm
- Max. load on table 8000kg
- Table diameter 1250/1400mm
- Table speeds 09~360/0.8~320rpm
- Table drive motor AC 37/45kW
- VTC type AC 15/18.5kW
- VTC type 30~30000rpm
- VTC type 0.001deg.

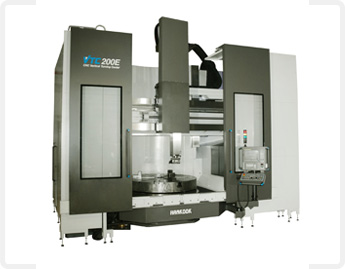

• High capacity. Heavy duty, vertical boring & turning mills
• Full C-axis and mill-spindle (VTC)
• Elevating-type crossrail)

---

- Max. turning diameter 2500mm
- Max. turning height 2000mm
- Max. load on table 12,000kg
- Table diameter 2000mm
- Table speeds 1~200rpm
- Table drive motor) AC 45/55kW
- VTC type) AC 18.5/22kW
- VTC type) 30~30000rpm
- VTC type) 0.001deg.

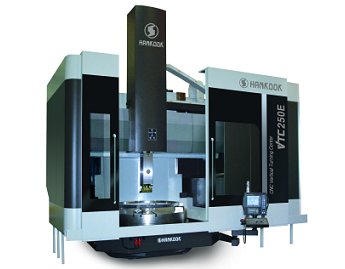

• Elevating cross rail1600mm
• Full controlled C-axis and rotary spindle(VTC)
• Automatic tool changing system 24 tools
• Heavy duty, wide guideways of box type
• Massive one-piece cast iron bed, column, saddle, and cross-rail
• Spheroidal-graphite-iron ram (280mm)

---

- Max. turning diameter 3000mm
- Max. turning height 2000mm
- Max. load on table 15,000kg
- Table diameter 2500mm
- Table speeds 1~150rpm
- Table drive motor AC 60/75kW
- VTC type AC 22/26kW
- VTC type 15~1500rpm

• Automatic tool changing system 24 tools
• Heavy duty, wide guideways of box type
• Massive one-piece cast iron bed, column, saddle, and cross-rail
• Spheroidal-graphite-iron ram (280mm)

---

- Max. turning diameter 2000mm
- Max. turning height 600mm
- Max. load on table 10,000kg
- Table diameter 1600mm
- Table speeds 0.7~280rpm
- Table drive molor AC 37/45kW
- Z-axis travel(Ram Vertical) 600mm

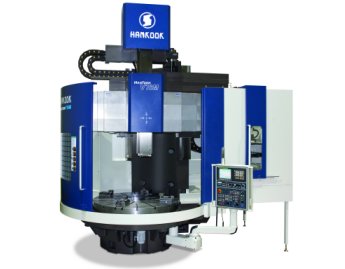

• Maximum 2000mm turning capaci1y
• Maximum 8tons load capable table
• Elevating cross rail of 1000mm travel
• Full controlled C-axis and rotary spindle (only for V16M)
• Au1omatic tool changing system up 1o 12/18 (V16/V16M) tools

---

- Max. turning diameter 2000mm
- Max. turning height 1600mm
- Max. torque 2134kg.m
- Table diameter 1600mm
- Table speeds 2~400rpm
- Table drive motor AC 37/45kW
